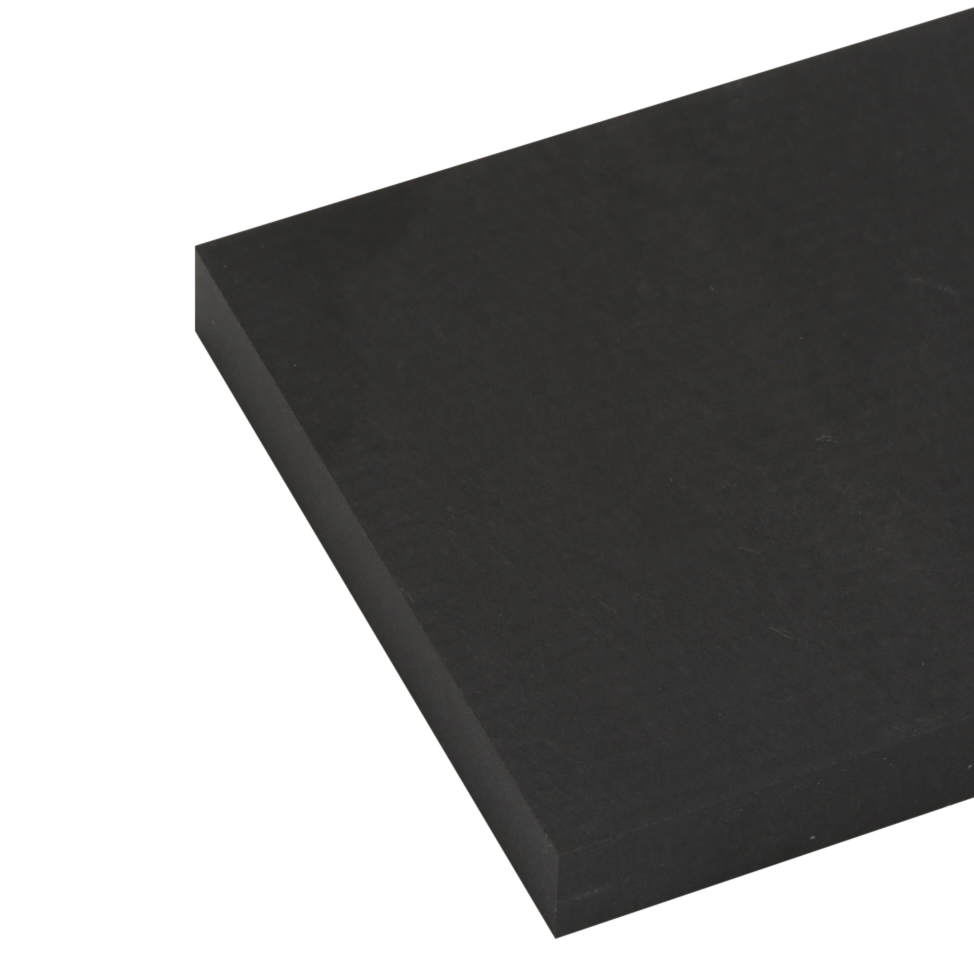

Nylon 66 30% Glass Filled Black Sheet is an engineering plastic with product characteristics including good dimensional stability, high mechanical strength and high heat deflection temperature. The long term service temperature range of Nylon 66 Sheet is from -20°C to 130°C and has a short term maximum service temperature of 200°C.
Typical fields of application for Nylon 66 Sheet include mechanical engineering, electrical and electronic industries and vehicle construction. Nylon 66 Sheet is a material well suited to CNC routing, CNC milling and CNC turning. Similar materials available from Plastock include Nylon 12 30% Glass Filled Sheet and Nylon 66 Extruded Sheet.
If you have a requirement for machined or finished Nylon 66 components please ask the Plastock team for more information.
| Material | Nylon 66 |
| Shape | Sheet |
| Colour | Black |
| Density (g/cm³) | 1.32 |
| Water absorption (%) | 1.7 |
| Yield stress (MPa) | 185 |
| Elongation at break (%) | 3 |
| Ball indentation hardness (MPa) | 270 |
| Shore hardness (scale D) | 85 |
| Tensile modulus of elasticity (MPa) | 10000 |
| Melting temperature (°C) | 260 |
| Thermal conductivity (W/(m*K) | 0.24 |
| Thermal capacity (kJ/(kg*K) | 1.5 |
| CLTE (10⁻⁶K⁻¹) | 50 |
| Service temp long term min (°C) | -20 |
| Service temp long term max (°C) | 130 |
| Service temp short term max (°C) | 200 |
| Heat deflection temperature (°C) | 240 |
| Flammability 3mm | HB |
| Flammability 6mm | V2 |
| Material type | Glass Filled |
