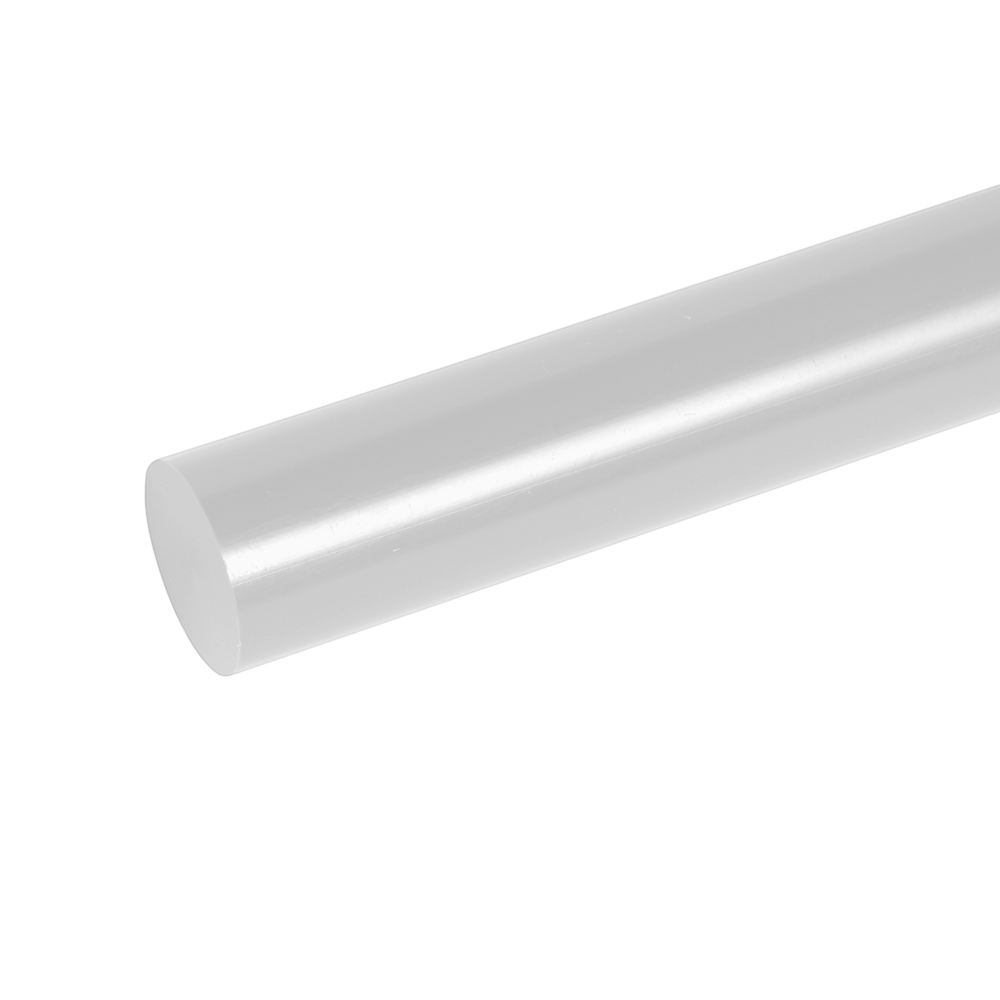

PVC-C is a post-chlorinated PVC-U with high rigidity, strength and hardness at elevated temperatures (+85 °C). It can withstand corrosive liquids at temperatures greater than standard PVC-U.
Other characteristics include:
- High mechanical strength, tensile strength and hardness
- Good insulation properties for electronics
- High chemical resistance
- Self-extinguishing
- Low water absorption
- Low impact strength
Typical fields of application for CPVC Rod include chemical engineering and tank building, clean room and semiconductor industries and ventilation manufacturing. CPVC Rod is a material well suited to billeting, precision grinding and CNC turning. Similar materials available from Plastock include ABS Extruded Grey Rod and PETP Extruded Natural Rod.
If you have a requirement for machined or finished CPVC components please ask the Plastock team for more information.
| Material | PVC-C |
| Shape | Rod |
| Colour | Light Grey RAL 7040 |
| Density (g/cm³) | 1.52 |
| Water absorption (%) | 0.5 |
| Yield stress (MPa) | 49 |
| Elongation at break (%) | 15 |
| Notched impact strength (kJ/m²) | 27 |
| Ball indentation hardness (MPa) | 150 |
| Shore hardness (scale D) | 90 |
| Tensile modulus of elasticity (MPa) | 2570 |
| Melting temperature (°C) | 110 |
| Thermal conductivity (W/(m*K) | 0.14 |
| CLTE CLTE (10⁻⁶K⁻¹) | 70 |
| Service temp long term min (°C) | -15 |
| Service temp long term max (°C) | 85 |
| Heat deflection temperature (°C) | 105 |
| Dielectric constant | 3 |
| Dielectric strength (kV/mm) | 40 |
| Volume resistivity (Ω*cm) | >10¹³ |
| Surface resistivity (Ω) | ≥10¹³ |
| Flammability 3mm | VO |
| Flammability 6mm | VO |
| Material type | Extruded |
