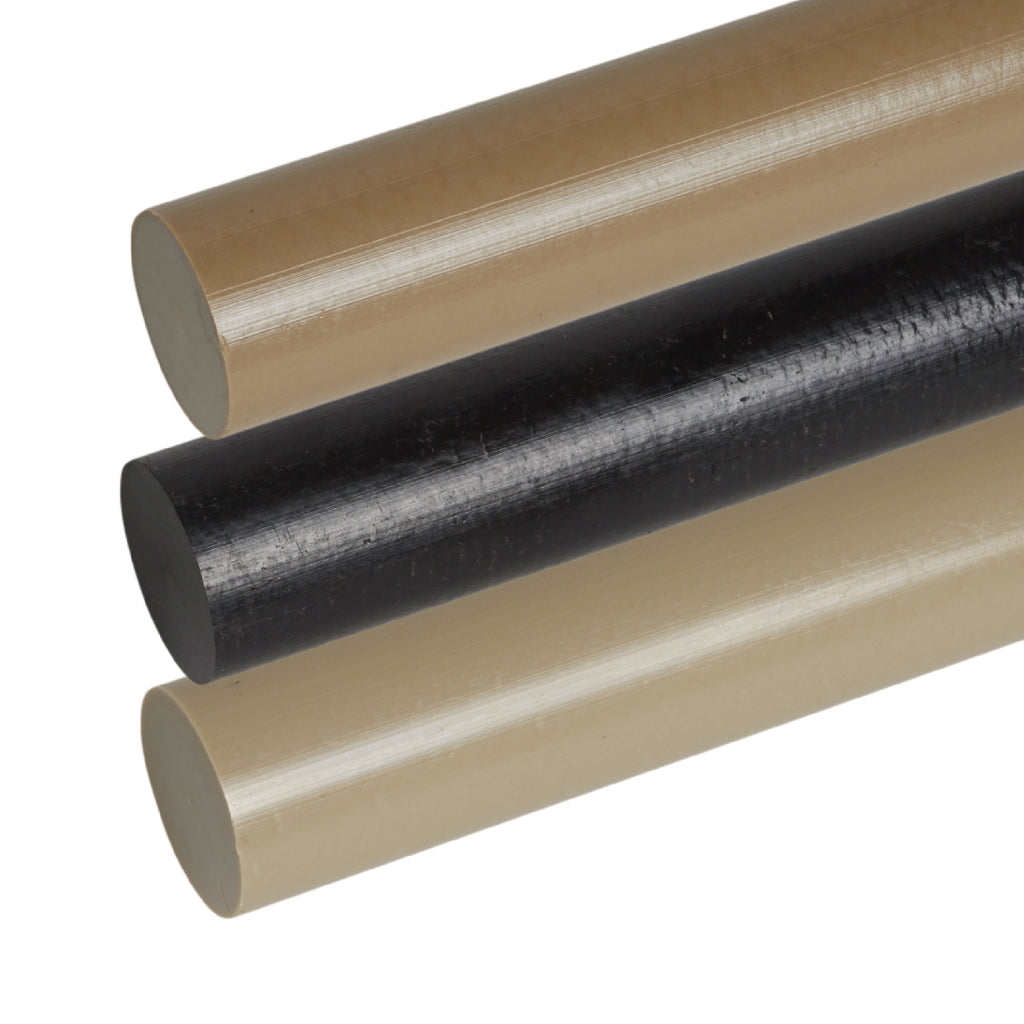

PEEK 30% Glass Filled Natural Rod is a high performance engineering plastic with product characteristics including high rigidity and good dimensional stability, very low creep tendency and very high continuous service temperature. The long term service temperature range of PEEK Rod is from -20°C to 250°C and has a short term maximum service temperature of 310°C.
Typical fields of application for PEEK Rod include precision and electrical engineering, aerospace engineering and aircraft industries. PEEK Rod is a material well suited to billeting, precision grinding and CNC turning. Similar materials available from Plastock include PEEK 450G Medical Grade Natural Rod and PEEK 450G Extruded Black Rod.
If you have a requirement for machined or finished PEEK components please ask the Plastock team for more information.
| Material | PEEK |
| Shape | Rod |
| Colour | Natural |
| Density (g/cm³) | 1.49 |
| Water absorption (%) | 0.1 |
| Yield stress (MPa) | 156 |
| Elongation at break (%) | 3 |
| Tensile modulus of elasticity (MPa) | 9700 |
| Ball indentation hardness (MPa) | 80 |
| Shore hardness (scale D) | 88 |
| Melting temperature (°C) | 343 |
| Thermal conductivity (W/(m*K) | 0.43 |
| CLTE (10⁻⁶K⁻¹) | 30 |
| Service temp long term min (°C) | -20 |
| Service temp long term max (°C) | 250 |
| Service temp short term max (°C) | 310 |
| Heat deflection temperature (°C) | 315 |
| Dielectric constant | 3.2 |
| Dielectric strength (kV/mm) | 20 |
| Volume resistivity (Ω*cm) | 10¹⁴ |
| Surface resistivity (Ω) | 10¹³ |
| Comparative tracking index | 175 |
| Flammability 3mm | VO |
| Flammability 6mm | VO |
| Material type | Glass Filled |
Minimum order value excluding VAT & delivery is £25
What is the cost of delivery?
Because of the huge variation in our orders we have developed a specialised shipping calculator for clients ordering online. Once you fill out your order details and progress through to the online checkout, our calculator will automatically work out the precise shipping cost for you to check before you proceed.
What delivery methods do you use?
We have a selection of couriers suited to the size, weight and type of product you order from us. It is likely we will deliver your goods with a courier service such as Tuffnells, TNT, DHL etc. You can track your order with the shipment number, if you would like us to send you the tracking number for your order please contact us or give us a call and we can track it for you.
If you would like to specify any special delivery instructions these can be entered at the point of ordering or please give us a call once you have placed your order and we will try to accommodate your requests.
Delivery options...
- Collection. Once your order is ready for collection, we shall call you to advise. Our collection point is open until 5pm - Monday - Friday.
- Standard Delivery. All of our orders come with standard delivery which is typically a 1-3 working day service. Standard delivery assumes reasonable access and is to ground floor, or use of a suitable lift for anything above ground level.
- In a hurry? We can look into premium delivery services at an extra cost. Give us a call on 01494 449 975 to find out more.
- Installation. If required please get in touch about our installation services and how we can best support you, all with a smile!
See our shipping page for more details.
