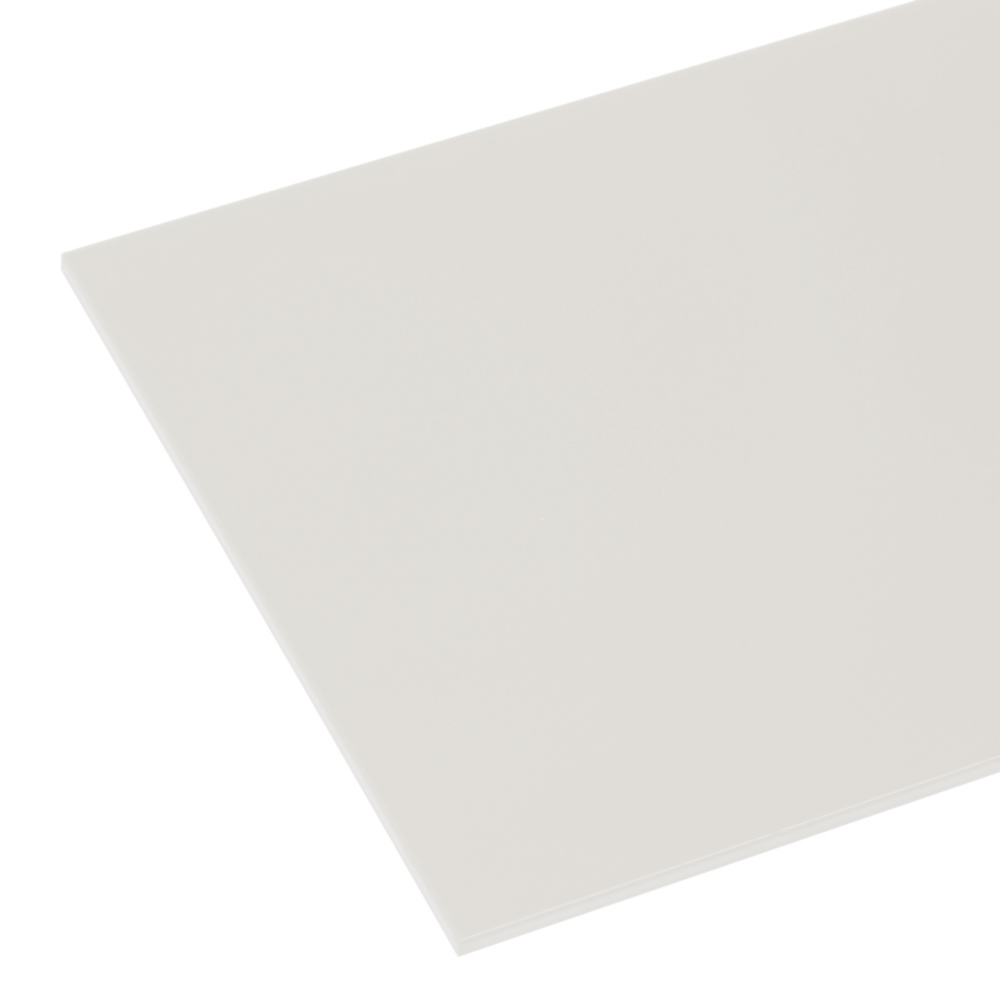

PPC Extruded Natural Sheet is a product with characteristics including high strength, high heat resistance and high chemical resistance. The long term service temperature range of PPC Sheet is from -30°C to 100°C and has a short term maximum service temperature of 150°C.
Typical fields of application for PPC Sheet include chemical engineering, tank building and ventilation manufacturing. PPC Sheet is a material well suited to CNC routing, welding and fabrication.
If you have a requirement for machined or finished PPC components please ask the Plastock team for more information.
| Material | PPC |
| Shape | Sheet |
| Colour | Natural |
| Density (g/cm³) | 0.91 |
| Yield stress (MPa) | 23 |
| Elongation at break (%) | >50 |
| Notched impact strength (kJ/m²) | >40 |
| Shore hardness (scale D) | 69 |
| Tensile modulus of elasticity (MPa) | 1100 |
| Melting temperature (°C) | 165 |
| Thermal conductivity (W/(m*K) | 0.2 |
| Thermal capacity (kJ/(kg*K) | 1.7 |
| CLTE (10⁻⁶K⁻¹) | 120 |
| Service temp long term min (°C) | -30 |
| Service temp long term max (°C) | 100 |
| Service temp short term max (°C) | 150 |
| Heat deflection temperature (°C) | 85 |
| Dielectric constant | 2.5 |
| Dielectric strength (kV/mm) | 45 |
| Surface resistivity (Ω) | 10¹³ |
| Comparative tracking index | 600 |
| Flammability 3mm | HB |
| Flammability 6mm | HB |
| Material type | Extruded |
