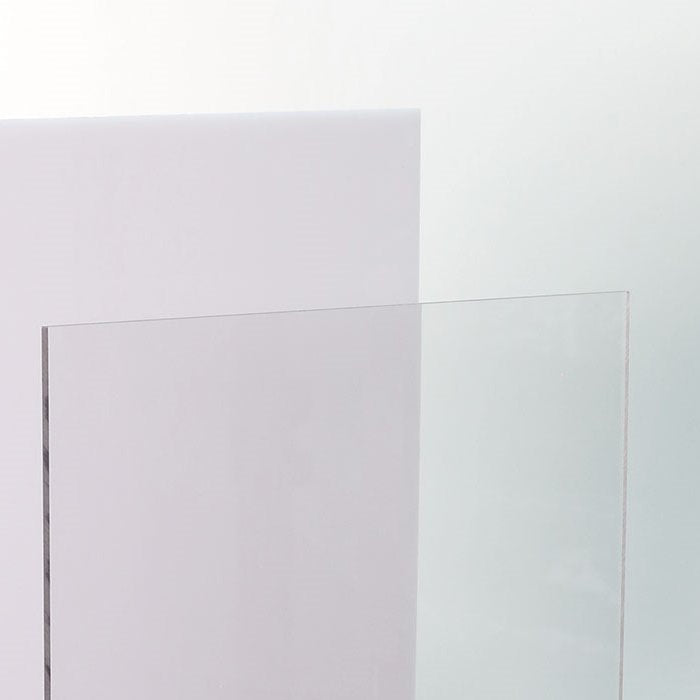

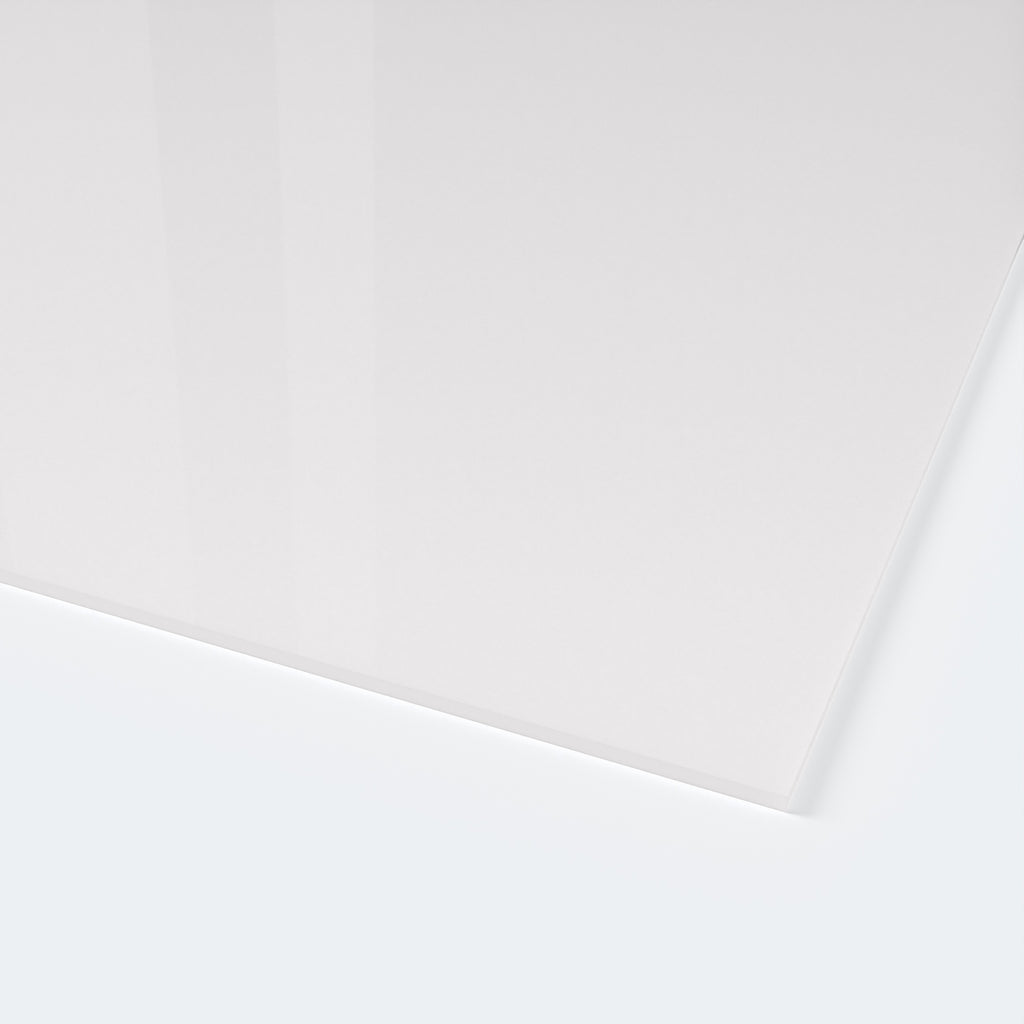

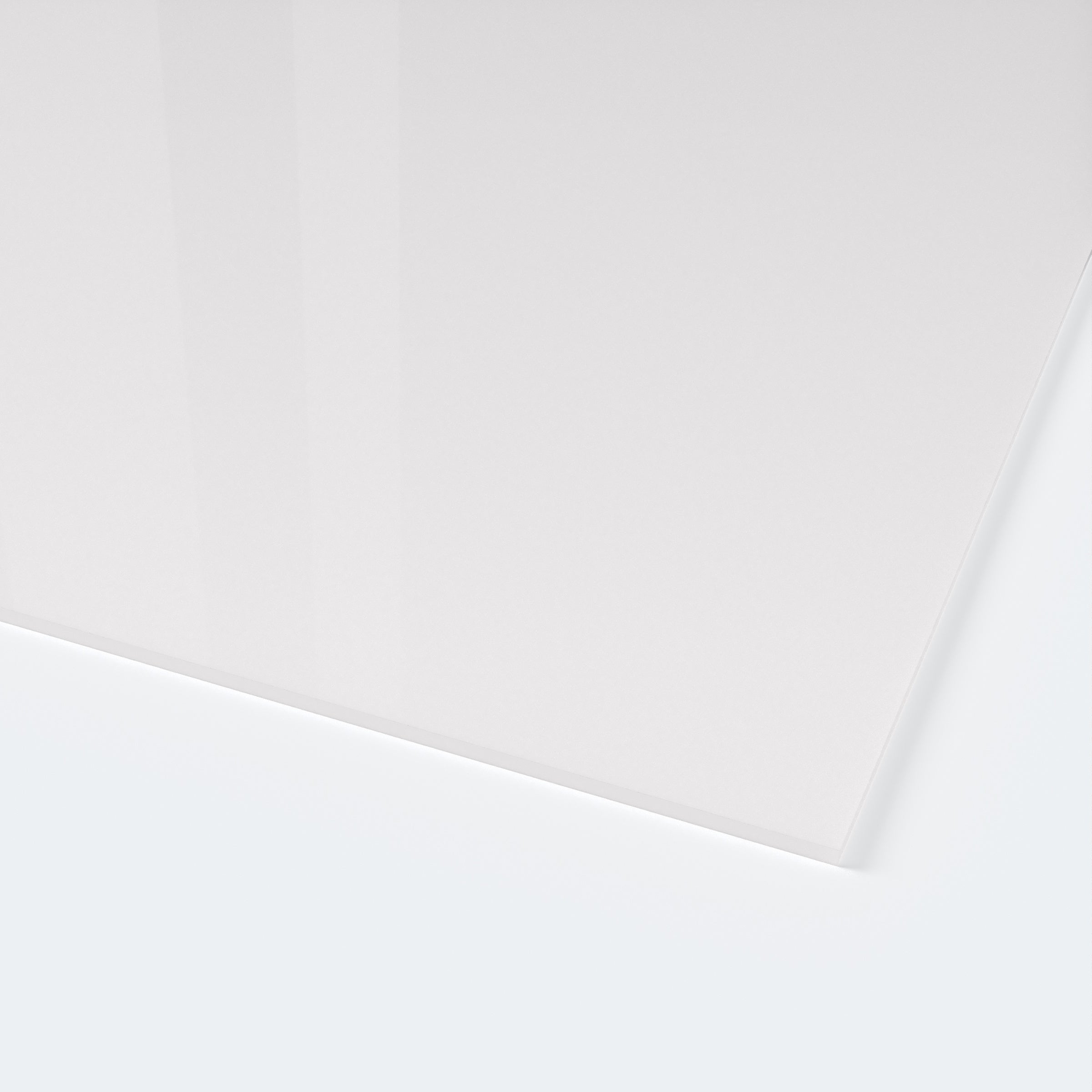

Vivak PETG sheets offer high impact strength, a good fire rating and are fully recyclable. They are particularly lightweight, weather resistant and show extreme break resistance even at low temperatures. The opal UV sheets are translucent white with good light diffusion and are UV stable.
Vivak PETG sheets are easily fabricated and have superior thermoforming properties. They can be rapidly thermoformed at low temperatures ensuring low energy consumption and short production cycles, saving time and cost. They can also be printed with standard screen printing equipment, outperforming acrylic on cross hatch tests.
Vivak PETG offers almost unlimited freedom of design when making three-dimensional parts. Typical applications include outdoor displays, poster pillars, vending machines, poster boards and outdoor advertising boards. If you have a requirement for machined or finished Vivac PETG components please ask the Plastock team for more information.
| Material | PETG |
| Shape | Sheet |
| Colour | Opal 2130 |
| Density (g/cm³) | 1.27 |
| Water absorption (%) | 0.2 |
| Yield stress (MPa) | 45 |
| Elongation at break (%) | 35 |
| Tensile modulus of elasticity (MPa) | 2020 |
| Notched impact strength (kJ/m²) | 6 |
| CLTE (10⁻⁶K⁻¹) | 120 |
| Service temp long term max (°C) | 65 |
| Heat deflection temperature (°C) | 63-70 |
| Melting temperature (°C) | 80 |
| Thermal conductivity (W/(m*K) | 0.2 |
| Dielectric strength (kV/mm) | 16.1 |
| Volume resistivity (Ω*cm) | 10¹⁵ |
| Surface resistivity (Ω) | 10¹⁵ |
| Dielectric constant | 2.6 |
| Material type | Extruded |
See Manuals tab for the full Product Data Sheet.
