Details
Size guide: 1st external depth - 2nd external depth - 3rd thickness (mm).
- Description
- Tech Specs
- Shipping

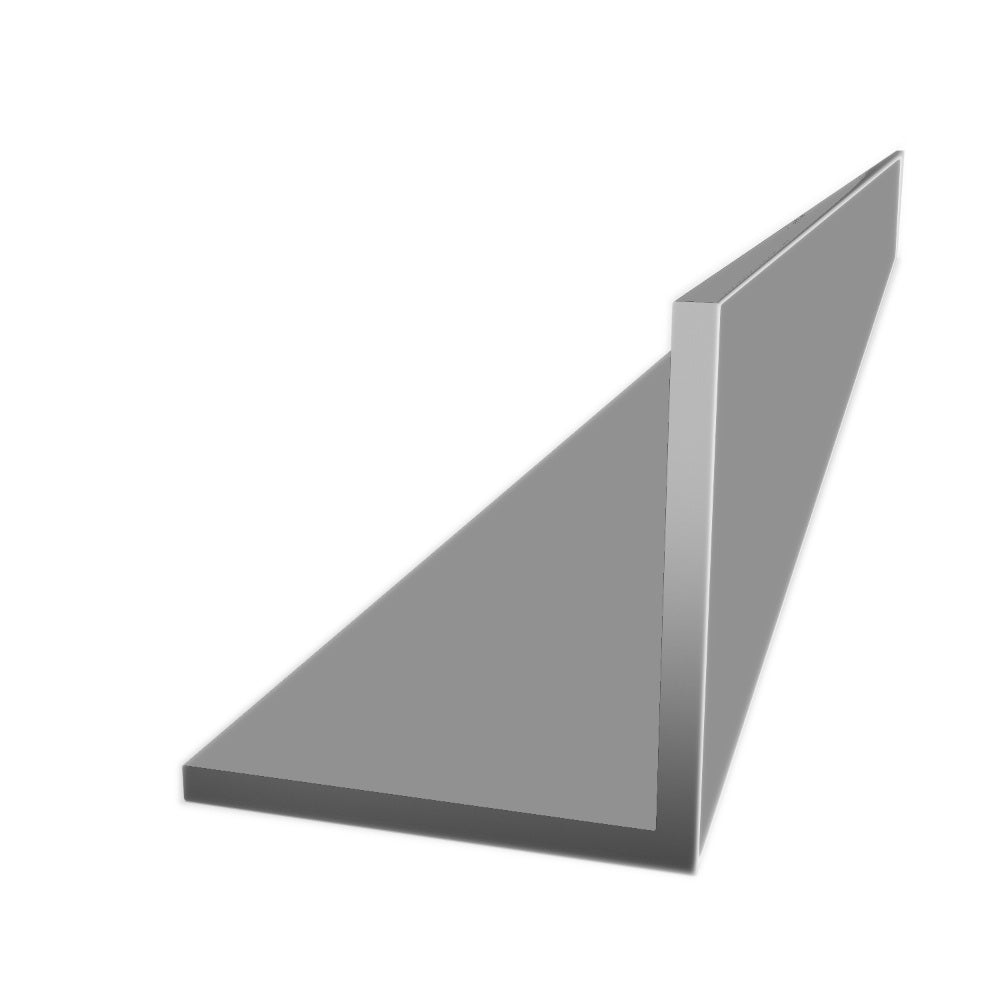

Our Glass Fibre Angles are pultruded in a polyester matrix to BS EN 13706 specifications. The fibreglass layup is a combination of multi-layered cross-ply glass fibre fabrics, giving an enhanced across the axis strength for all round excellent mechanical properties.
Glass Fibre offers numerous benefits including a lightweight construction and a high strength-to-weight ratio that ensures reliable performance even under heavy loads. Its versatility and ease of handling makes it a practical, cost effective choice for a wide range of structural applications while its resistance to corrosion makes it an ideal choice for use in demanding environments. Glass Fibre can be easily machined and cut to size, allowing for easy customization to meet the unique requirements of your project.
Offering high performance and durability combined with ease of handling and installation, Glass Fibre is an ideal solution for a wide range of applications. Please ask the Plastock team for more information on our products and how we can help you achieve your project goals.
| Colour | Grey |
| Density (g/cm³) | 1.5-2 |
| Water absorption (%) | 0.5-2 |
| Construction | Pultrusion |
| Resin Matrix | Polyester |
| Fibre Orientation | Crossdirectional |
| CLTE (10⁻⁶K⁻¹) | 7.2 |
| Full Section Modulus | < 6mm thick: E17 (GPa17) |
| 6mm & >: E23 (GPa23) | |
| Tensile strength axial (MPa) | E17: 170 |
| E23: 240 | |
| Tensile strength transverse (MPa) | E17: 30 |
| E23: 50 | |
| Flexural strength axial (MPa) | E17: 170 |
| E23: 240 | |
| Flexural strength transverse (MPa) | E17: 70 |
| E23: 100 | |
| Tensile modulus axial (MPa) | E17: 1.7x10⁴ |
| E23: 2.4x10⁴ | |
| Tensile modulus transverse (MPa) | E17: 0.5x10⁴ |
| E23: 0.7x10⁴ | |
| Inter-laminar shear (MPa) | E17: 15 |
| E23: 25 | |
| Pin bearing strength (MPa) | E17: 50 |
| E23: 70 | |
| Thermal conductivity (W/(m*K) | 0.2-0.5 |
| Heat distortion temp (°C) | 125-145 |
