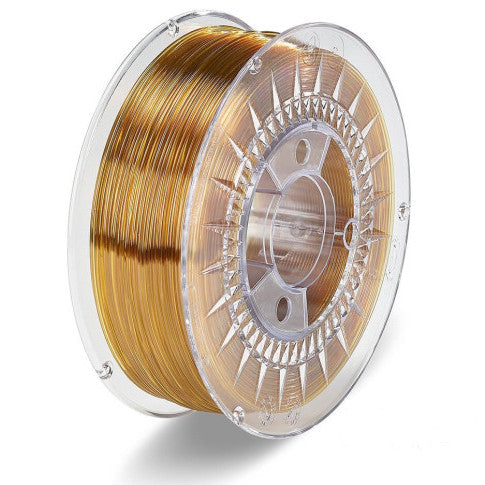

ULTEM™ AM1010F PEI filament is a polyetherimide product manufactured from ULTEM™ AM1010 resin. It has an excellent combination of high mechanical strength, dimensional stability and heat resistance. It is also Inherently flame retardant and is classified UL94-V0
Raw Material Approvals
- Aerospace FAR25.853
Our filaments are produced from high-quality raw materials with close tolerances (+/- 0,05 mm) allowing precise and failure-free 3D printing. They are low emission, odour free, shrinkage-free and have good layer adhesion. They are compatible with all standard 3D printers and are delivered carefully spooled and packed in easy to use resealable zip bags.
If you have a requirement for printed or finished components please ask the Plastock team for more information.
| Material | ULTEM™ AM1010F PEI |
| Shape | Printing Filament |
| Colour | Natural |
| Tolerances (mm) | +/- 0.05 mm |
| Density (g/cm³) | 1.27 |
| Water absorption (%) | 0.25 |
| Service temp long term max (°C) | 170 |
| Service temp long term min (°C) | - |
| Yield stress (MPa) | 110 |
| Elongation at break (%) | 50 |
| Notched impact strength (kJ/m²) | 32 |
| Ball indentation hardness (MPa) | 106 |
| Shore hardness (scale D) | - |
| Tensile modulus of elasticity (MPa) | 3350 |
| Heat deflection temperature (°C) | 209 |
| CLTE (10⁻⁶K⁻¹) | 52 |
| Thermal conductivity (W/(m*K) | 0.22 |
| Melting temperature (°C) | 350-410 |
| Pressure nozzle temperature (°C) | 370-390 |
| Printing plate temperature (°C) | 150 |
| Build chamber temperature (°C) | 90 |
| Nozzle diameter (hardened steel) mm | 0.4 |
| Print speed (mm/s) | 45 |
| Fan speed (%) | 0-25 |
| Predrying temperature (°C) | 120 |
| Predrying time (h) | 8 |
