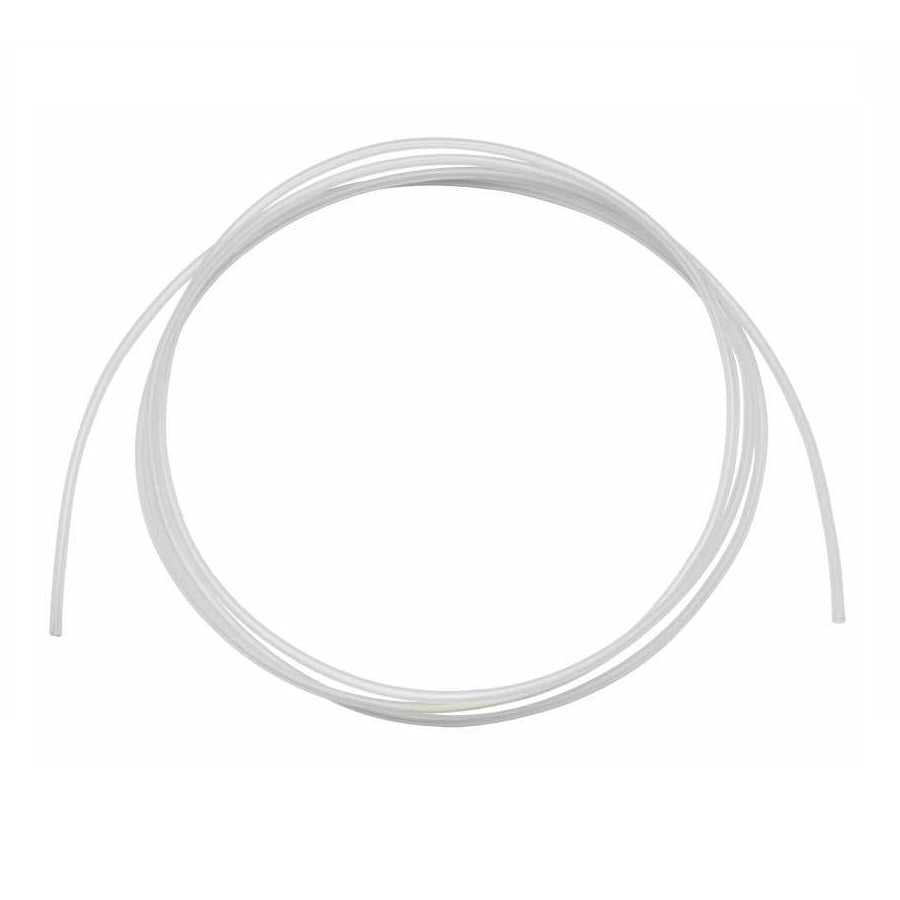

Polytetrafluoroethylene (PTFE) is a high performance, synthetic fluoropolymer with product characteristics including a very high working temperature, a low friction surface, very high electrical resistance and non-stick characteristics. This range of PTFE tubing is available in American Wire Gauge (AWG) sizes designed specifically for the insulation of standard wire & cable diameters.
Our PTFE tubing is also available in Imperial sizes and metric sizes including ultra-thin wall tubing (inside diameter 0.2-1.5mm with a very thin wall of 0.1mm).
Please note: Coils may not be continuous lengths. If you require a continuous length please specify this when you order.
See Downloads tab for AWG sizes.
| Material | PTFE |
| Shape | AWG Sleeve |
| Colour | Natural |
| Density (g/cm³) | 2.14-2.19 |
| Water absorption (%) | 0.01 |
| Yield stress (MPa) | 10 |
| Elongation at break (%) | 200-500 |
| Shore hardness (scale D) | 55-72 |
| Tensile modulus of elasticity (MPa) | 600-800 |
| Melting temperature (°C) | 327 |
| Thermal conductivity (W/(m*K) | 0.23 |
| Dielectric strength (kV/mm) | 40-80 |
| Arc resistance (sec) | >360 |
| Surface resistivity (Ω) | 10¹⁷ |
See Downloads tab for full technical properties
